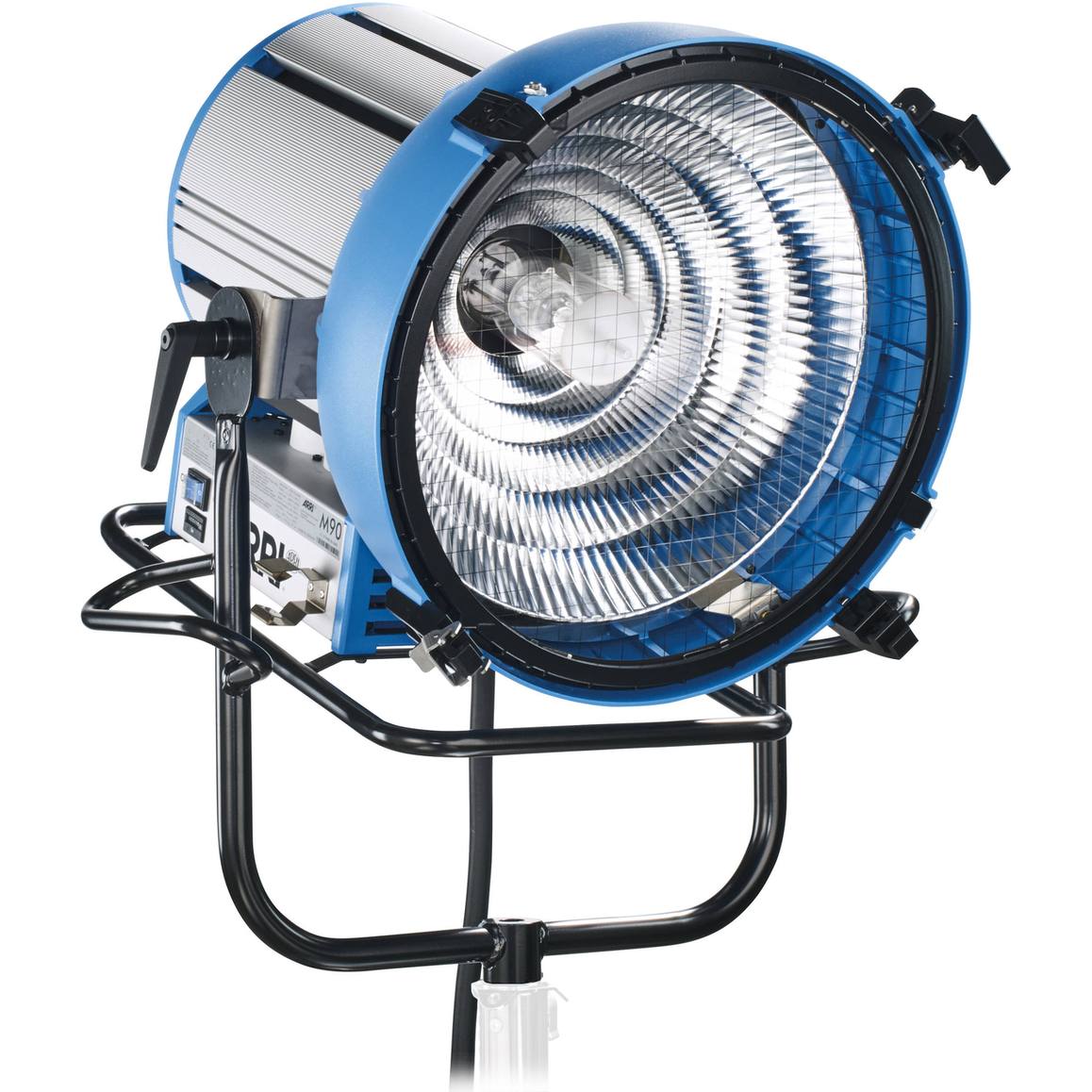

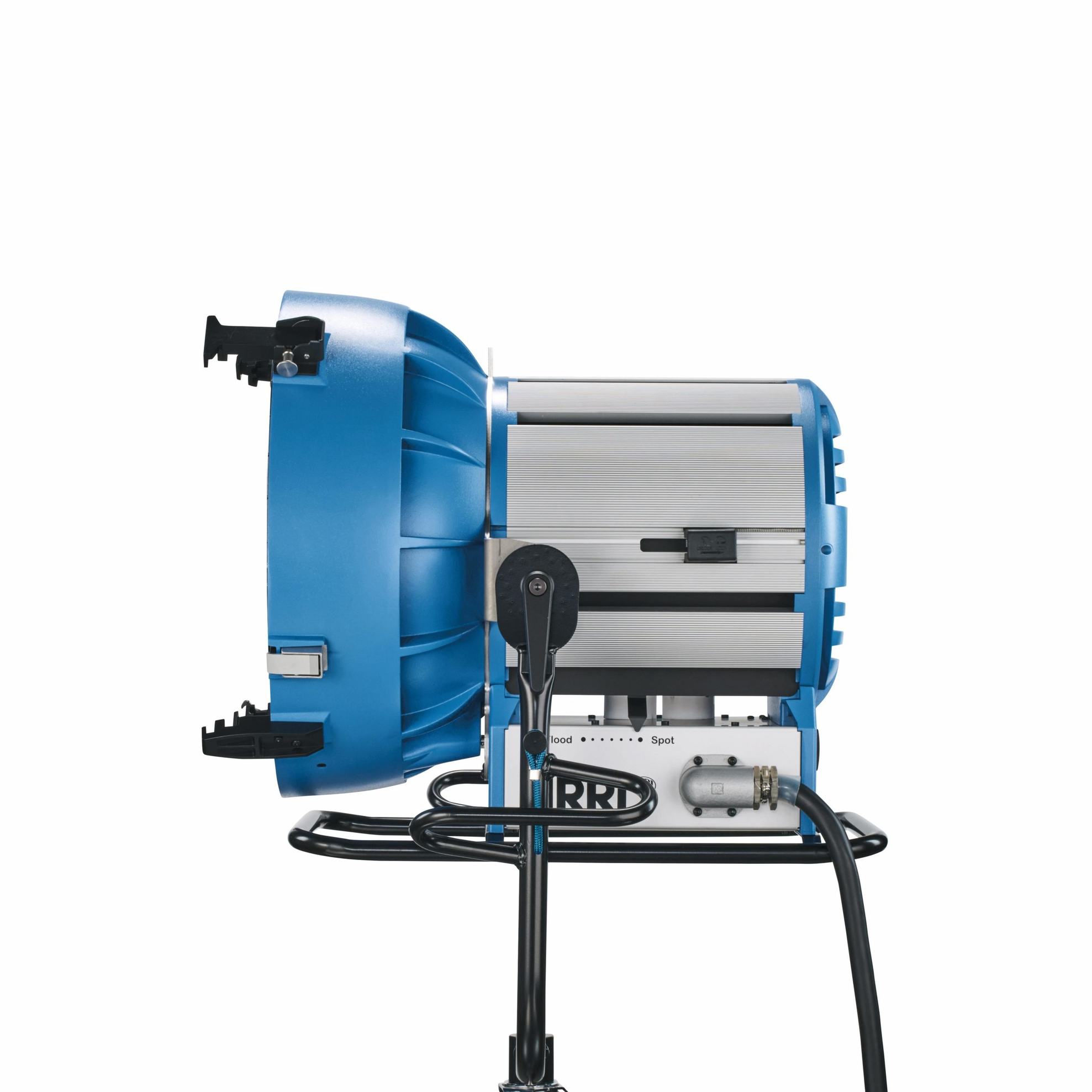

ARRI M90 HMI-6000W Lamp- with High Speed Ballast

With power that positions it between the M40 and the ARRIMAX 18/12, the M90 HMI Lamp Head from ARRI employs faceted MAX Reflector Technology that focuses from 15 to 49 degrees, combining the best qualities of a Fresnel and PAR fixture to produce an output similar to a 12,000W light from a 9,000W lamp. The IP23 weather-resistant M90 ships with a yoke with a 1-1/8″ Junior mounting pin. Tilt lock levers on both sides of the light firmly secure the weighty 40Kg fixture.
The M90 requires a ballast for use and 2 are available. Both units employ CCL (Compensation of Cable Losses) to maintain power with long cable runs independent of their length. They also feature a power-saving Active Line Filter (ALF) and built-in DMX for remote operation from a console. The standard EB 6/9 operates at 50, 60 and 75 Hz while the 1000 Hz high speed version allows up to 1,000 flicker-free frames per second.

Key Features:

• MAX Technology Reflector Design
• Output Similar to a 12K PAR
• Focusable from 15 to 49°
• Optional 6/9K Ballasts and Lamps
• IP23 Weather Resistant
• 1-1/8″ Junior Pin
